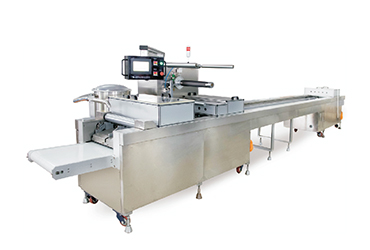

1). Item: soft blister packing machine for ET tubes.
2). With 1 no blister mould an 3 nos blade and down mould.
3). With flexographic printer: HP TIPC with 2 nos x 1 inch nozzle, printing distance: 25mm.
4). With 50 litre ink and 1 ink pump.
5). Min./Max. package width: 19mm / 400mm.
6). Max. package length: 410 mm.
7). Max. package depth for single product: 60 mm.
8). Working speed: 4-6 seconds each cycle.
9). Power supply: 380V/3Ph/50Hz.
10). Max. power input: 10KW.
11). Rated working pressure: 0.6-0.8 Mpa.
12). Cooling water volume: approx. 60L/h (@ <25).
13). Dimension (L/W/H): 7300/1100/1750 mm; net weight: approx. 1500kgs.
14). Casing: stainles steel 304.
15). Warranty: 14 months since the date of loading.
16). Make/brand of main components:
a. Operation interface: Mitsubishi of Japan.
b. Programmable controller: Mitsubishi of Japan.
c. Servo motor: Mitsubishi of Japan.
d. Servo drive amplifier: Mitsubishi of Japan.
e. Vacuum pump: BUSCH of Germany.
f. Thermostat: OMRON of Japan.
g. Single-phase solid state relay: CRYDOM of USA.
h. Color code sensor: SUNX of Japan.
i. Rodless cylinder: HOERBIGER of Germany.
j. Solenoid valve and cylinder: SMC of Japan or PNEUMAN of Taiwan.

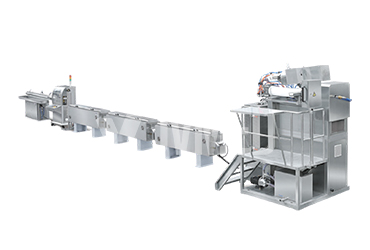

7.5kW SEW motor gear coupled reducer. 40mm dia.
PVC screw, L/D ratiao 24:1, virgin PVC granule output 18kg/hr.
Screw fabricated from high grade 42 CrMo Steel, chrome plated SEW-Eurodrive motor gearbox.

Applicable for tubing of diameters ranging 2-10mm. Applicable for tubing of ET tube, feeding tube, Nelaton catheter, Yankauer suction catheter etc. Auto material feeding system included.

Main features:
1). Production capacity: 800-1500 pcs per hour. 2). Power supply: 220-240V, 0.75KW, 2.5m2 Copper core.
3). Air compressed: 6-8kgs, 12mm tube connector.
4). Mitsubishi PLC control system.
5). Japanese technique that makes hole even.
6). Dimension (L/W/H): 445/345/865 mm.
7). Note: sizes of punching fittings nr. 2.0-10.0 included.

Main features:
1). Production capacity: 1000-1200 pcs per hour.
2). European technique that makes tube head even.
3). Totally 17 sets moulds included.
4). Used to trim different tube heads saying suction tube, feeding tube, foley catheter etc.
5). Dimension (L/W/H): 250/350/351 mm.

Main features:
1). Production capacity: 400-800 pcs per hour.
2). SMC air pumping fittings of Japanese technique.
3). THK mechanics module, driven by cool air technique and can be operated easily.
4). Used to make eyelet/hole of the endotracheal tubes mainly.
5). Dimension (L/W/H): 250/250/500 mm.

Main features:
1). Production capacity: 800-1000 pcs per hour.
2). Power supply: 220-240V, 1.5KW, 6m2 Copper core.
3). SMC air pumping fittings of Japanese technique.
4). THK mechanics module; can be operated easily.
5). Adjustable cutting angle.
6). Used to cut the angles of suction tube, endotracheal tube, feeding tube, foley catheter etc.
7). Dimension (L/W/H): 415/250/335 mm.
